As a 13 year old,
Wesley Cade got involved in the custom automotive scene long before he could
even drive. After high school in Southern California, he went off to a technical
school to learn the skills that would help him to build his own custom vehicles
and vehicles for others. He moved to Las Vegas, Nevada and now runs his own
shop, Cade Customs. After owning several custom vehicles including a small
air-bagged pickup and a big lifted full-size pickup, Wes made his next vehicle
purchase. At 6 and a half feet tall, Wes knew going back to a small pickup
wasn't going to be comfortable and needed a another big truck. He purchased this

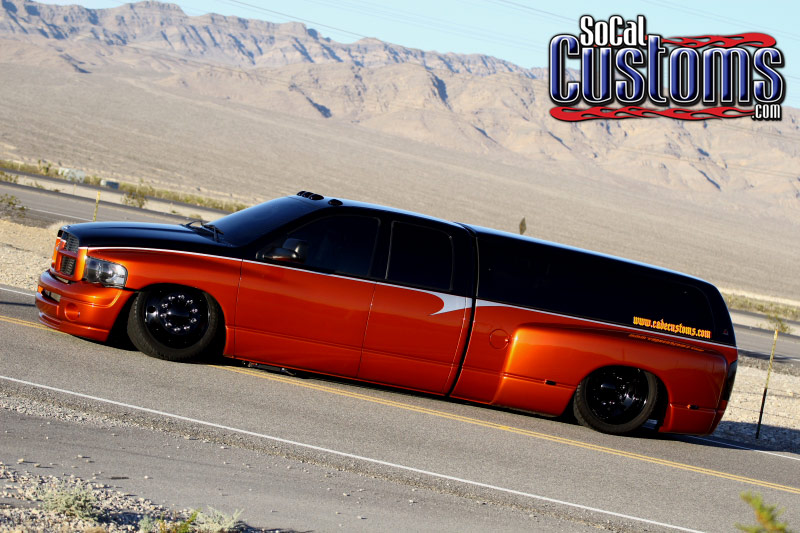

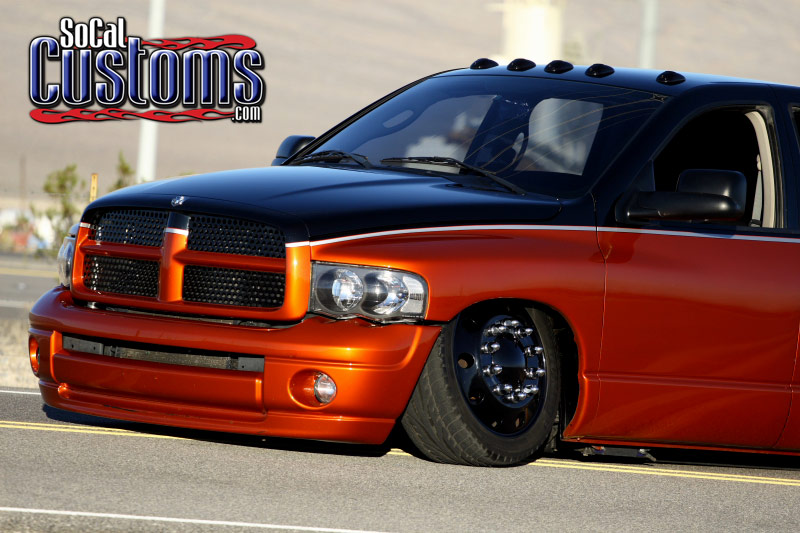

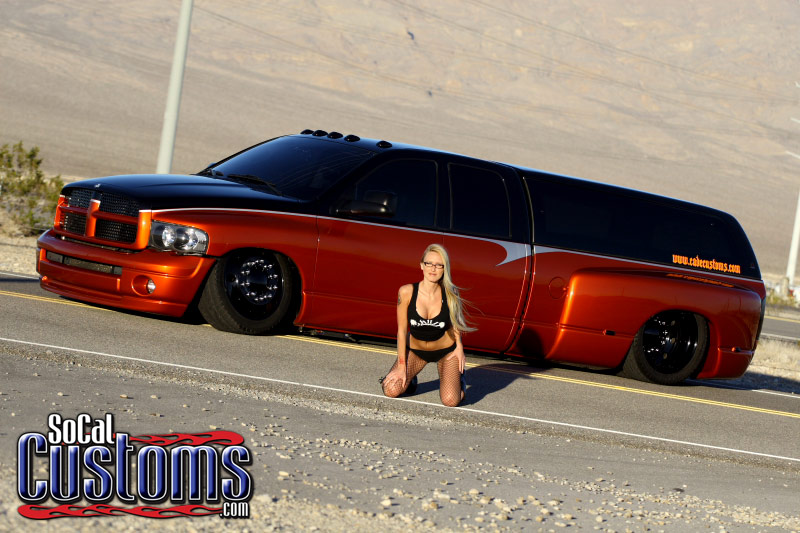

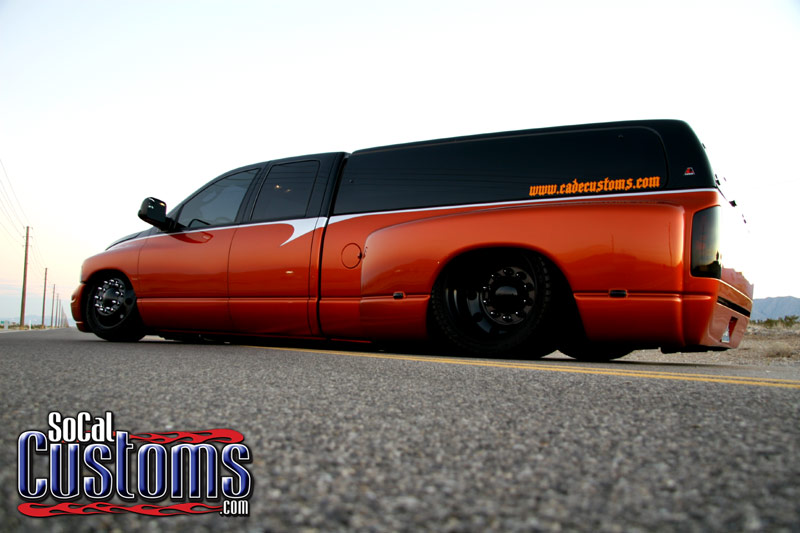

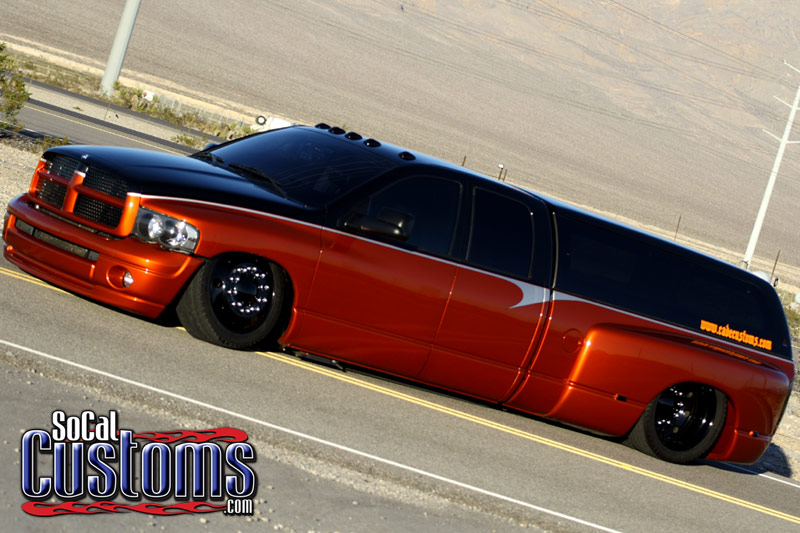

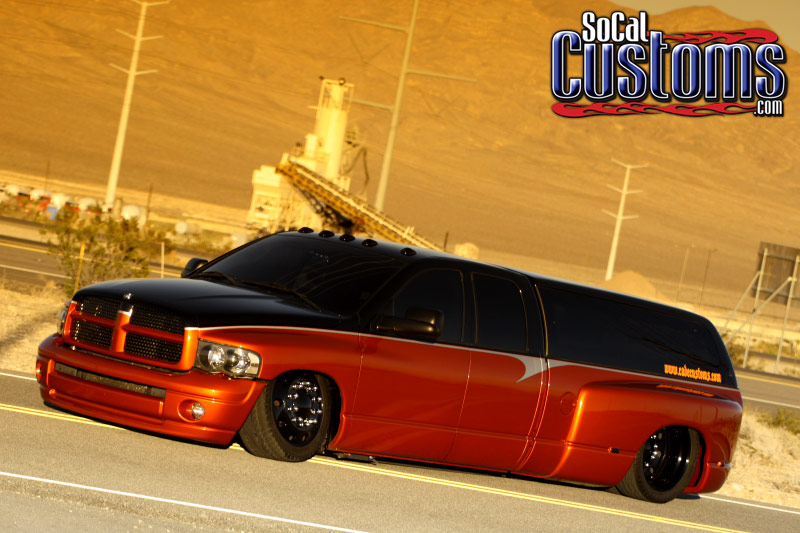

2005 Dodge Ram 3500 Crew Cab Dually and knew just what he wanted to do with it.
He wanted a big, bold, air-bagged truck that would grab attention at car shows
and still be a reliable daily driver. The project was started in 2005 as a SEMA
Show vehicle with only a few weeks to get it from stock to what you see here.
With it's super-dark windows, loud exhaust, and aggressive overall look, this is
one truck you don't want to get in the way of during your daily drive on
Nevada's highways.
Modifying the suspension
of a truck this size is no simple task. The air bags and fabricated parts have
to be able to withstand extreme weight as well as extra horsepower and torque.
Wes acquired the parts he needed to get started on bringing the truck down to
concrete level. With some help from friends, the truck received four Slam
Specialties HE-7 air bags, a custom 4-link with the 'bags mounted on the two
reverse bars, along with custom tubular upper and lower control arms with uni-balls
built by friend Rusty "Rusty Nail" Mixer from Arizona. The rear end was brought
to Sutton Engineering in City of Industry, California to be
shortened a total of 9-inches. With the rear end ready to re-installed, the
frame was modified with a step notch to allow for more travel and frame-laying
stance. Road dampening in a city that is always under construction was a concern
so Toxic Shocks were installed at each corner in place of the stock shocks that
would no longer be up to the task. Air adjustability is made possible using
three Air Zenith compressors filling two 7-gallon air tanks and an Avs 7-switch

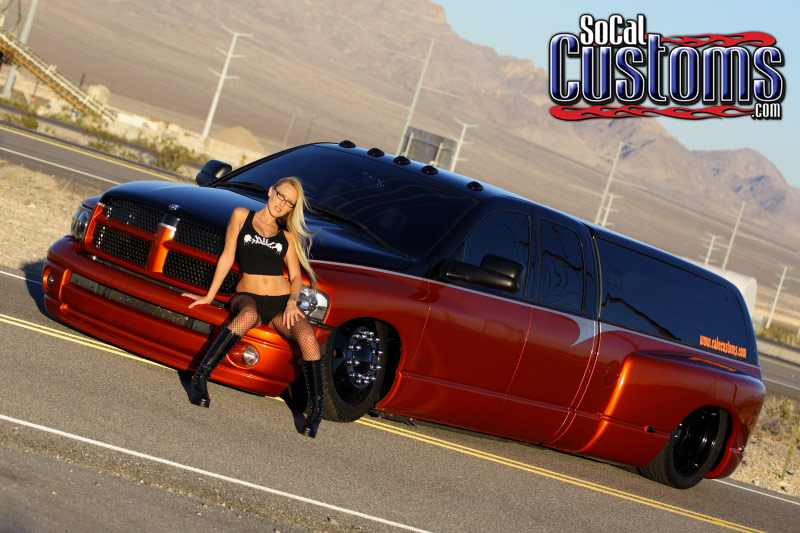

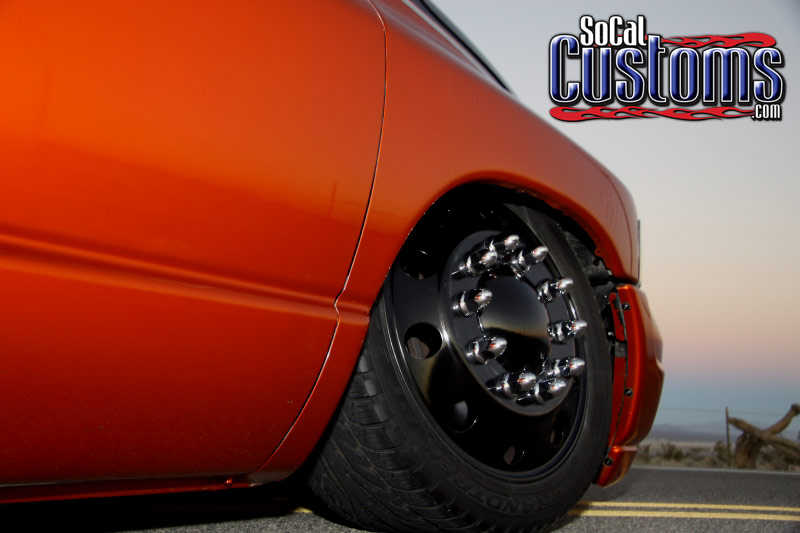

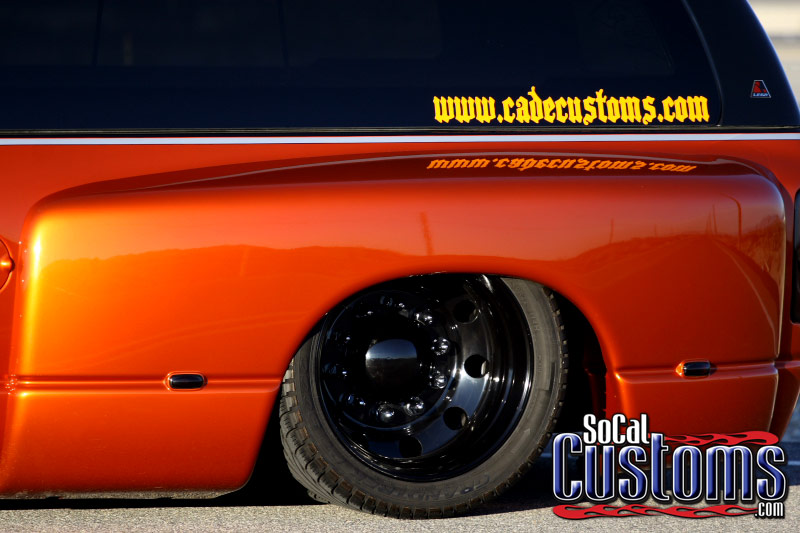

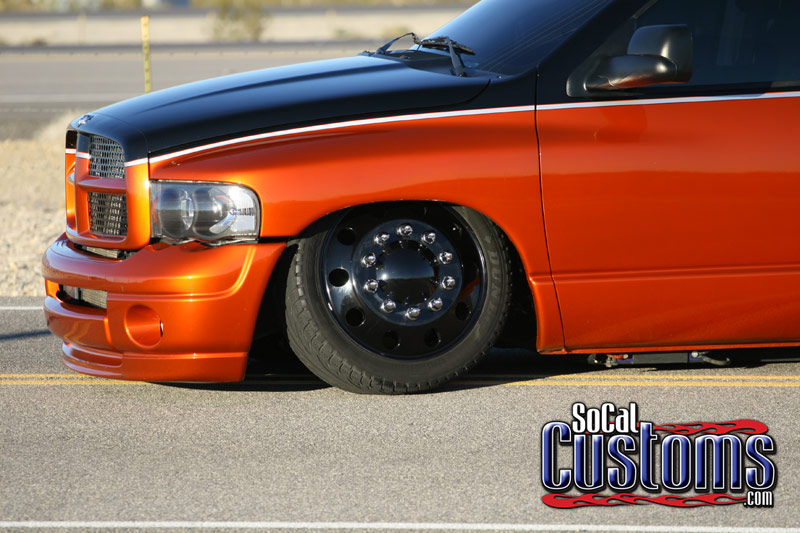

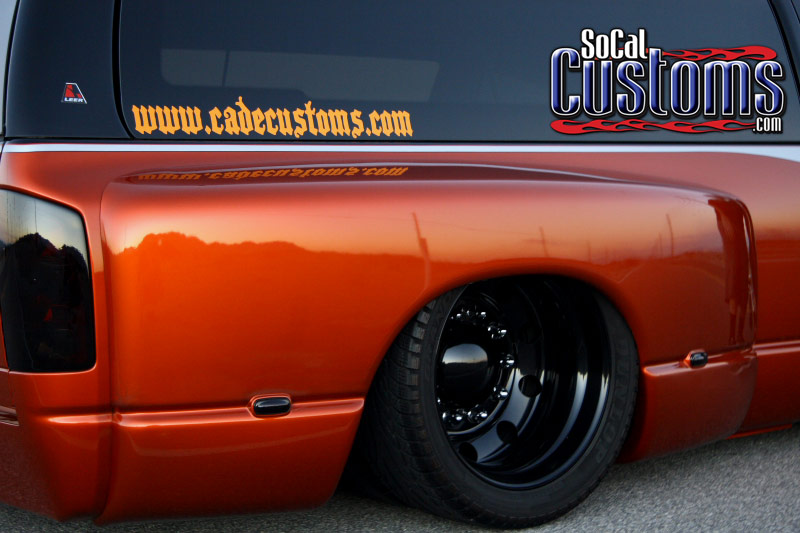

switchbox. The trucks aggressive stance would not be complete without the Alcoa
22-inch semi truck wheels. The wheels were acquired through American Force
Wheels and are attached using 8-to-10 lug adapters. The wheels were sandblasted
by Plastic Media Stripping and then Powdercoated black by Powdercoating Plus in
Las Vegas. The front wheels and dual rear wheels were all wrapped in 305/40/22
Dunlop Grandtrek PT9000 tires.
As his truck was in the
process of getting it's suspension work completed, Wes had already begun work on
the body of the truck. With the SEMA Show as his goal and a short time to
complete the work, he had to get it ready to be repainted. He removed the door handles, tailgate handle, tailgate running light, antenna,

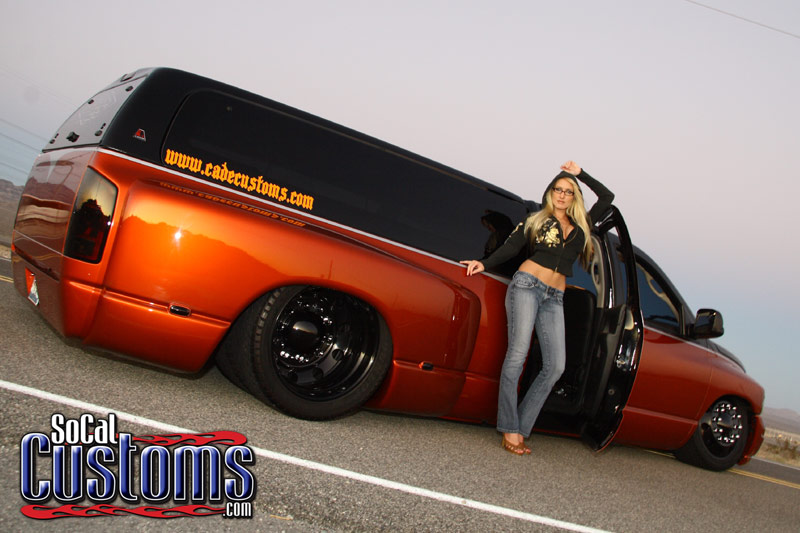

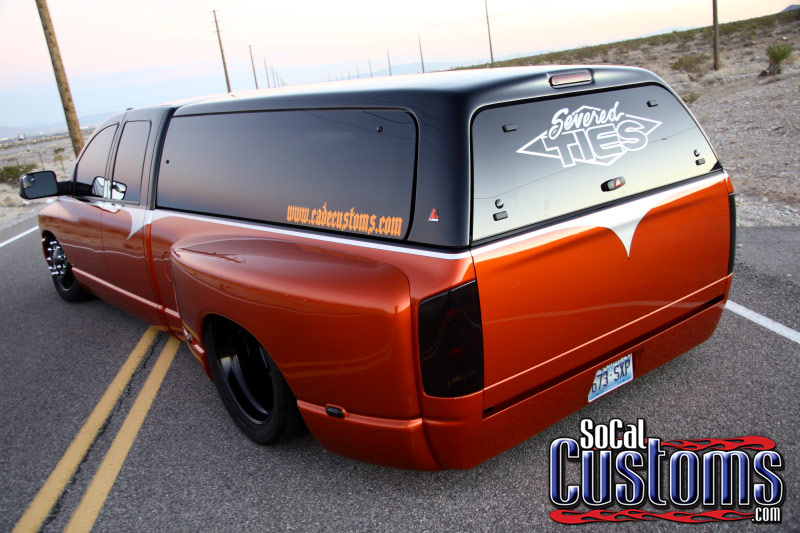

bedrail stake pockets, and rear bumper. The rear end was treated to a Sir
Michaels roll pan and tailgate handle relocator. The taillights and all running
lights were removed and covered in a Candy black paint by Wes to give them a

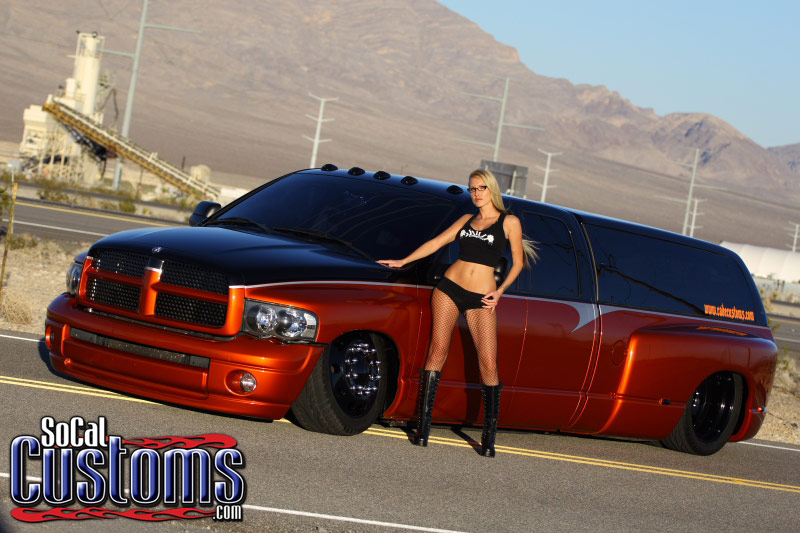

much darker appearance. The front grill was modified with a DJ Motorsports
hole-y grille insert and the bed was capped off with a Leer 100xq shell.
The 2-tone paint scheme was laid out with a mid-graphic split using Dupont
chromapremier series paint in black, silver, and go-man-go factory dodge colors.
The truck was then pinstriped by Joel Stevenson of Ten Ten Custom Paint.

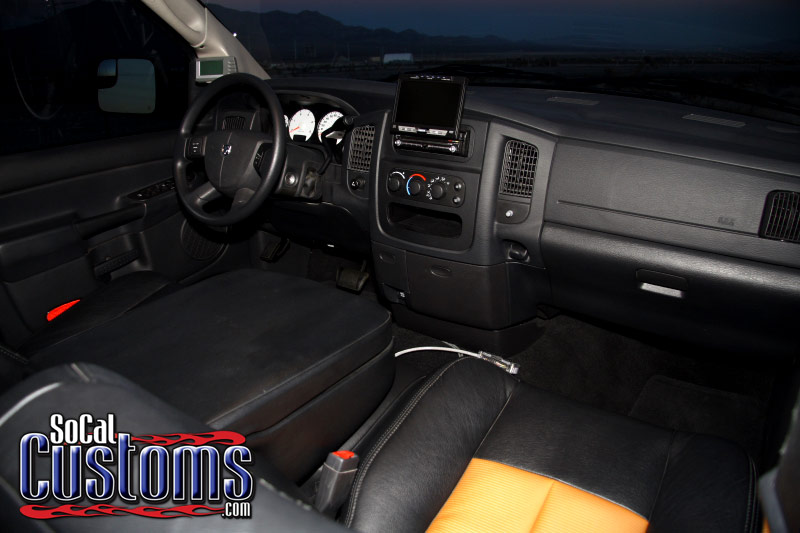

The factory interior

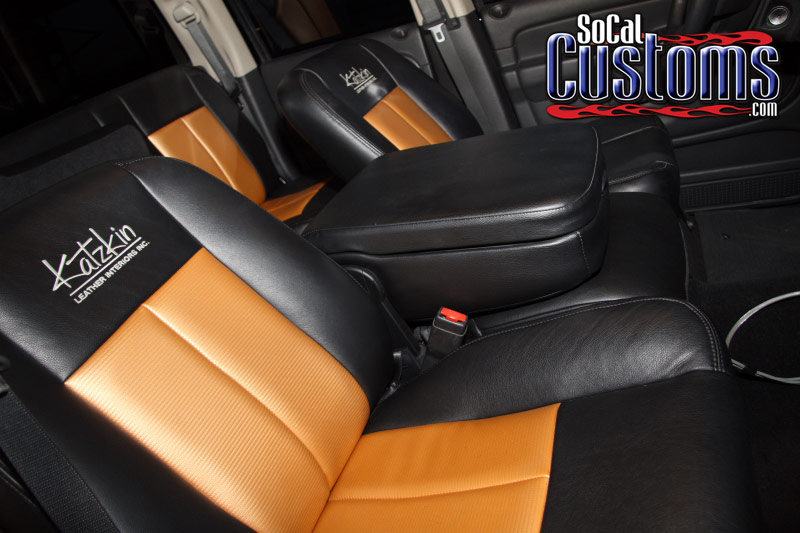

needed to be updated to go with the theme of Wes' dually so he turned to Katzkin
for color matched seat covers. The seats were fitted with black leather and
copper carbon fiber inserts but the factory headrests were not retained for a
low-back bucket seat look. A Ryno Manufacturing webbed billet mirror took the
place of the plastic factory counterpart. The factory stereo also needed to be
pumped up to another level. The head unit was replaced with an Audiovox flip up
monitor and the stock speakers were tossed in favor of Scosche EFX component
speakers. The components are powered by a hd-7004 amplifier and the two 10-inch
Scosche Subwoofers under the rear seat are powered by a hd-6002 amplifier. The
wiring, battery terminals, fuses, distribution blocks, and digital display
1-farad capacitor are all Scosche EFX series. The trucks remote start alarm
controls Autoloc door poppers for entry. There are two Kinetik Audio hc2000
batteries relocated underneath driver and passenger doors for non-stop power.
The audio install was performed by Corey Lewis from Ultimate Electronics.
He then called upon his
brother Jason and his company Something Kustom, to help with the performance
aspect of the turbo-diesel dually. They installed a host of Bully Dog products
including an air intake, 4-inch exhaust, bully kicker nitrous kit, propane
injection with remote fill, and triple dog downloader with outlook. They also
installed ARP head studs.
Wes would like to thank
his Dad because without him, it probably
wouldn't be where it is today. His Mom for always giving him support with his
passions, and his brother Jason Cade of
Something Kustom. Also, all of his friends who helped with the project, his club
Severed Ties, all of his sponsors including Dupont, Scosche, DJ Motorsports, Kinetik Audio, Dunlop Tires, Slam
Specialties, Ryno Mfg, Bully Dog Diesel Performance, Air Zenith compressors, ARP Head Studs,
Sir Michaels, Line-X, Katzkin, and Audiovox.
